Object-side telecentric lenses with a 110 mm working distance, in coaxial and non-coaxial designs, for dimensional inspection and measurement applications.
Showing 6 of 6 models

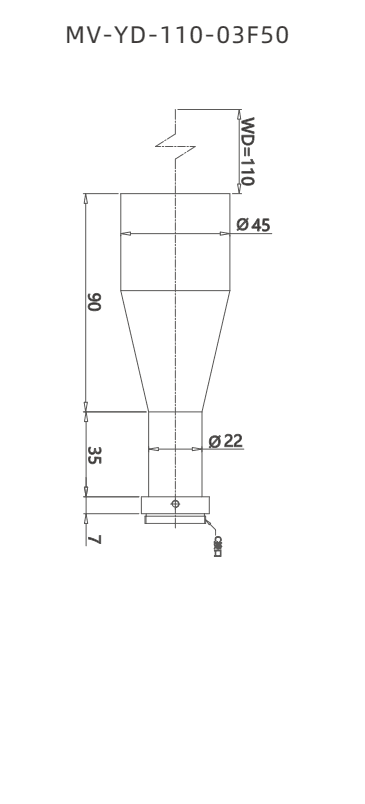

Model drawing
Non-coaxial
0.3× object-side telecentric optics for dimensional inspection.
Confirm measurement tolerance, field of view, depth of field and the illumination arrangement for your part.
Source: MindVision Lens catalog.pdf, PDF page 22.

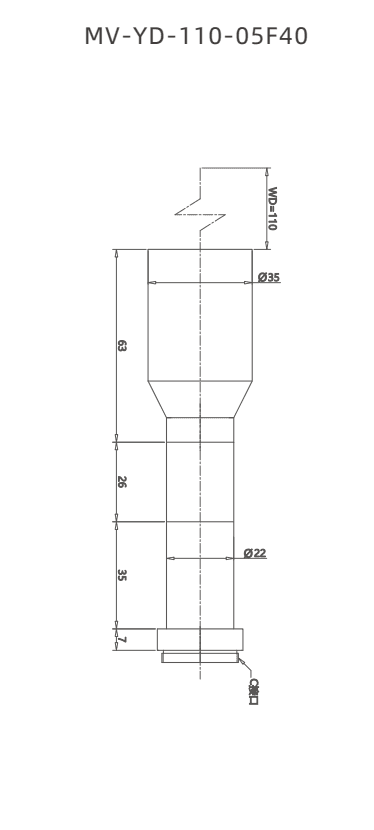

Model drawing
Non-coaxial
0.5× object-side telecentric optics for dimensional inspection.
Confirm measurement tolerance, field of view, depth of field and the illumination arrangement for your part.
Source: MindVision Lens catalog.pdf, PDF page 22.

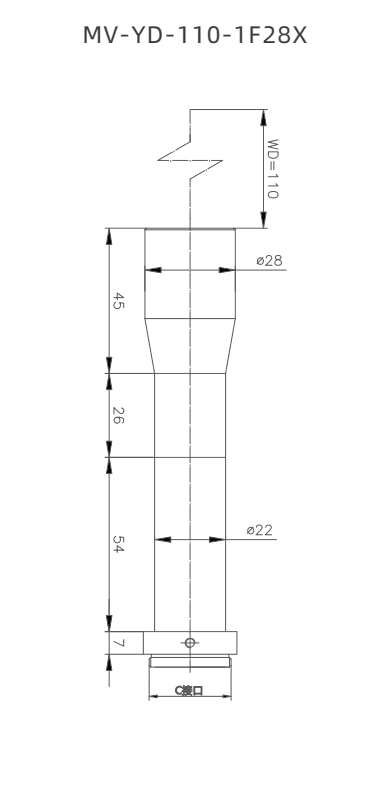

Model drawing
Non-coaxial
1.0× object-side telecentric optics for dimensional inspection.
Confirm measurement tolerance, field of view, depth of field and the illumination arrangement for your part.
Source: MindVision Lens catalog.pdf, PDF page 22.

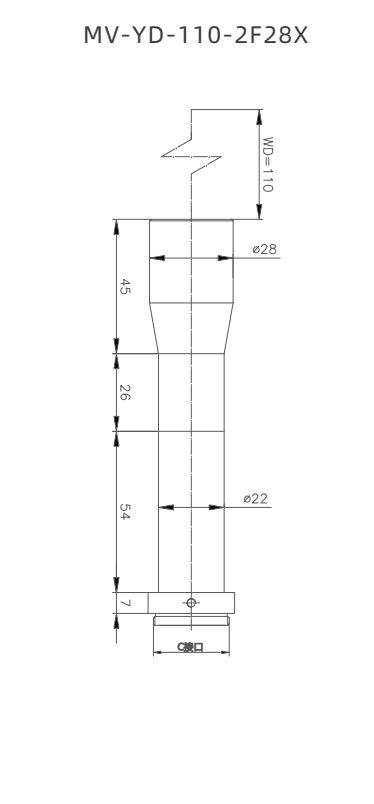

Model drawing
Non-coaxial
2.0× object-side telecentric optics for dimensional inspection.
Confirm measurement tolerance, field of view, depth of field and the illumination arrangement for your part.
Source: MindVision Lens catalog.pdf, PDF page 22.

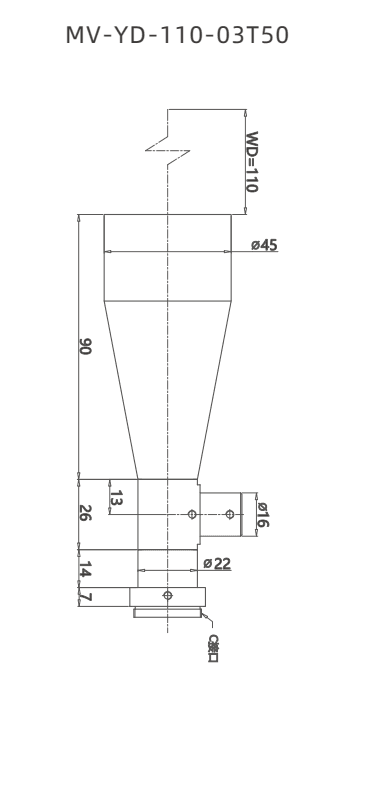

Model drawing
Coaxial
0.3× object-side telecentric optics for dimensional inspection.
Confirm measurement tolerance, field of view, depth of field and the illumination arrangement for your part.
Source: MindVision Lens catalog.pdf, PDF page 23.

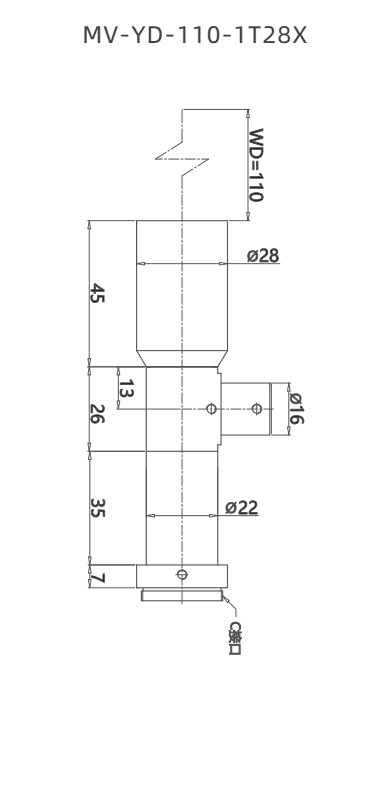

Model drawing
Coaxial
1.0× object-side telecentric optics for dimensional inspection.
Confirm measurement tolerance, field of view, depth of field and the illumination arrangement for your part.
Source: MindVision Lens catalog.pdf, PDF page 23.
