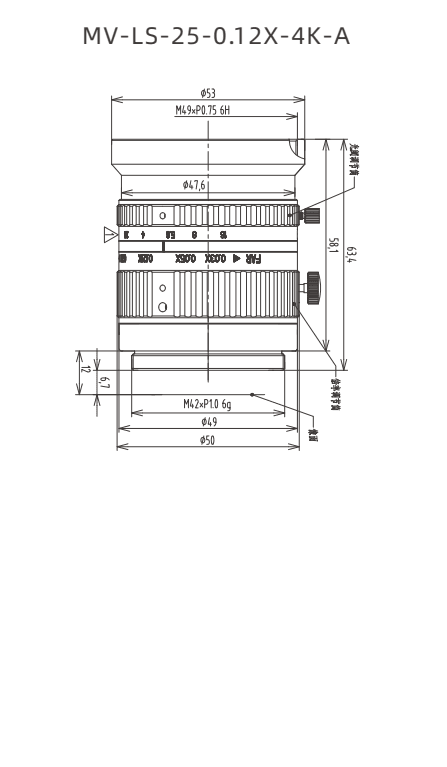

Model drawing

MV-LS-25-0.12X-4K-A

25 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 25 mm
Standard magnification: 0.121×
Image circle diameter: 32 mm

More specifications & selection details

Working distance at standard magnification: 200 mm
Mount: M42 × 1

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 24.

Enquire about this model

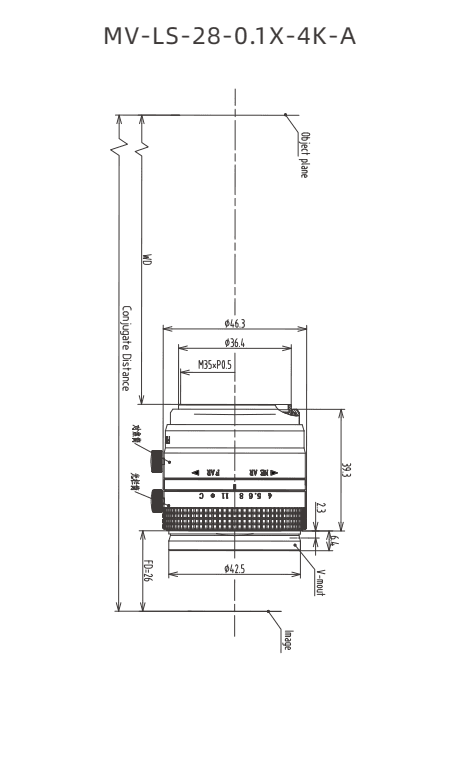

Model drawing

MV-LS-28-0.1X-4K-A

29 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 29 mm
Standard magnification: 0.1×
Image circle diameter: 30 mm

More specifications & selection details

Working distance at standard magnification: 299.7 mm
Mount: M42 × 1

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 24.

Enquire about this model

4K family example

MV-LS-40-0.1X-4K-A

40 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 40 mm
Standard magnification: 0.1×
Image circle diameter: 43.2 mm

More specifications & selection details

Working distance at standard magnification: 429.9 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 24.

Enquire about this model

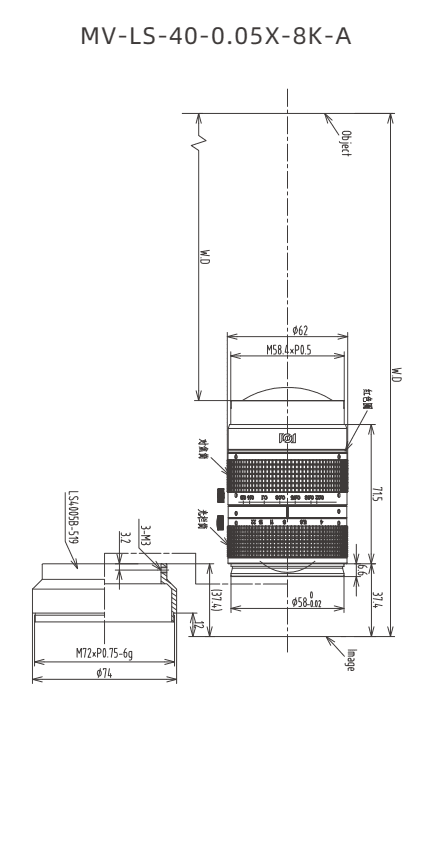

Model drawing

MV-LS-40-0.05X-8K-A

40 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 40 mm
Standard magnification: 0.05×
Image circle diameter: 60 mm

More specifications & selection details

Working distance at standard magnification: 818.8 mm
Mount: M72 × 0.75

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 25.

Enquire about this model

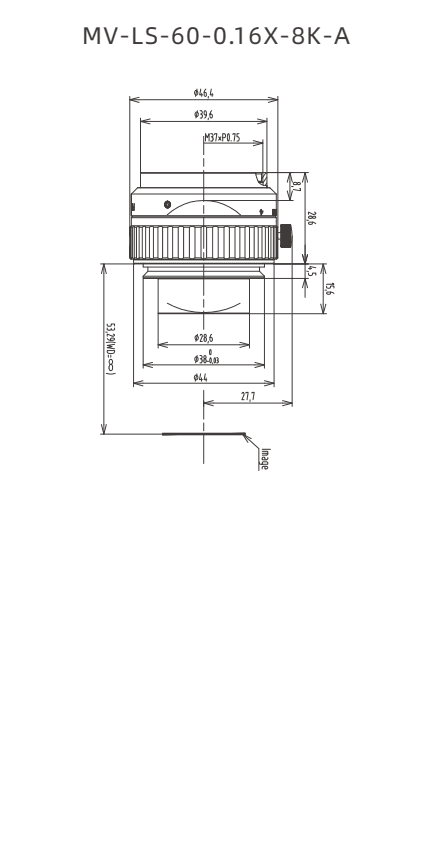

Model drawing

MV-LS-60-0.16X-8K-A

60 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 60 mm
Standard magnification: 0.167×
Image circle diameter: 64 mm

More specifications & selection details

Working distance at standard magnification: 404.4 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 25.

Enquire about this model

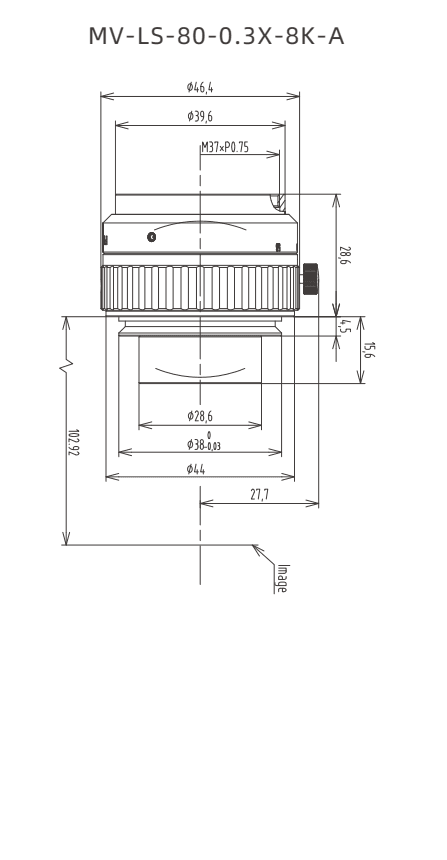

Model drawing

MV-LS-80-0.3X-8K-A

80 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 80 mm
Standard magnification: 0.3×
Image circle diameter: 64 mm

More specifications & selection details

Working distance at standard magnification: 320.26 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 25.

Enquire about this model

Model drawing

16K, 3.5 um

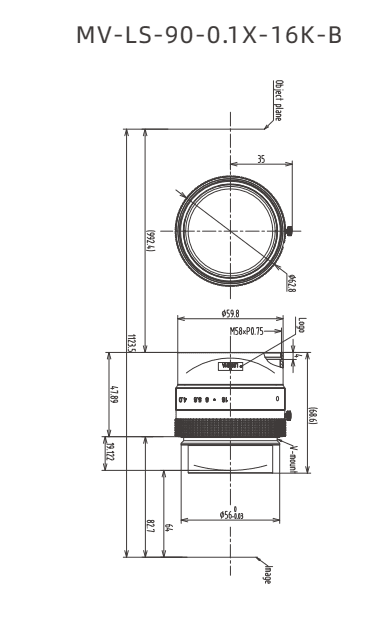

MV-LS-90-0.1X-16K-B

90 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 90 mm
Standard magnification: 0.1×
Image circle diameter: 64 mm

More specifications & selection details

Working distance at standard magnification: 992.4 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 26.

Enquire about this model

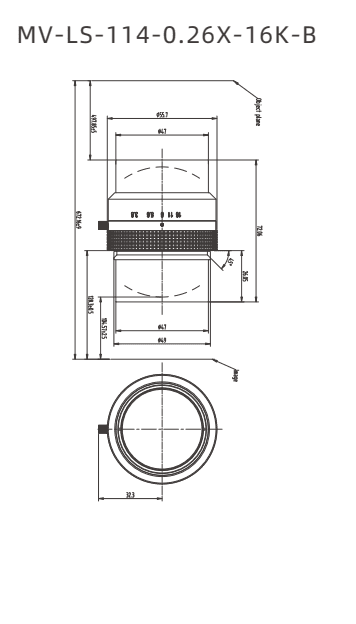

Model drawing

16K, 3.5 um

MV-LS-114-0.26X-16K-B

114 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 114 mm
Standard magnification: 0.26×
Image circle diameter: 66 mm

More specifications & selection details

Working distance at standard magnification: 497.85 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 26.

Enquire about this model

Model drawing

16K, 3.5 um

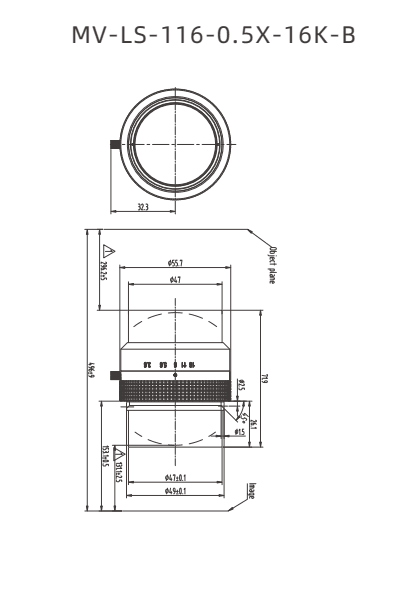

MV-LS-116-0.5X-16K-B

116 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 116 mm
Standard magnification: 0.5×
Image circle diameter: 66 mm

More specifications & selection details

Working distance at standard magnification: 269.2 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 26.

Enquire about this model

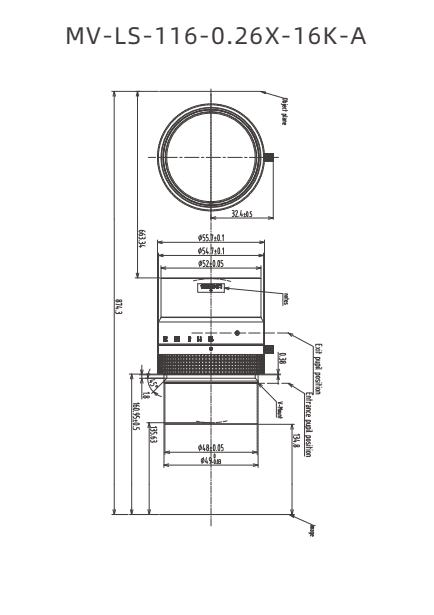

Model drawing

16K, 5 um

MV-LS-116-0.26X-16K-A

116 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 116 mm
Standard magnification: 0.26×
Image circle diameter: 82 mm

More specifications & selection details

Working distance at standard magnification: 663.34 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 27.

Enquire about this model

Model drawing

16K, 5 um

MV-LS-120-0.5X-16K-A

120 mm optics for line-scan imaging, selected for sensor width and magnification.

Focal length: 120 mm
Standard magnification: 0.5×
Image circle diameter: 82 mm

More specifications & selection details

Working distance at standard magnification: 390.66 mm
Mount: V-mount

Working distance applies at the listed standard magnification. Check the sensor width and camera adapter; the K rating alone does not establish compatibility.

Source: MindVision Lens catalog.pdf, PDF page 27.

Enquire about this model
