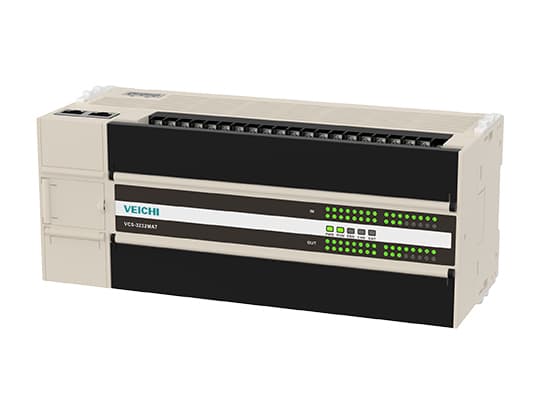

VEICHI VC5

EtherCAT motion PLC, 32 real axes at a 250 us cycle

The motion controller of the range. Thirty-two real axes plus up to sixty-four virtual, synchronised to within 80 nanoseconds, with electronic cam and gear profiles and both linear and circular interpolation built in rather than bolted on.

Motion control

32 real axes, 32-64 virtual axes over EtherCAT

Bus cycle

250 us minimum; sync accuracy +/-80 ns

High-speed I/O

8x 200 kHz counting inputs, 8x 200 kHz outputs

Communication

RS485, CAN, Ethernet, EtherCAT; Modbus-TCP, CANopen 301/402, N:N

Program space

200K steps

Languages

Ladder (LD), sequential function chart (SFC), function block (FB)

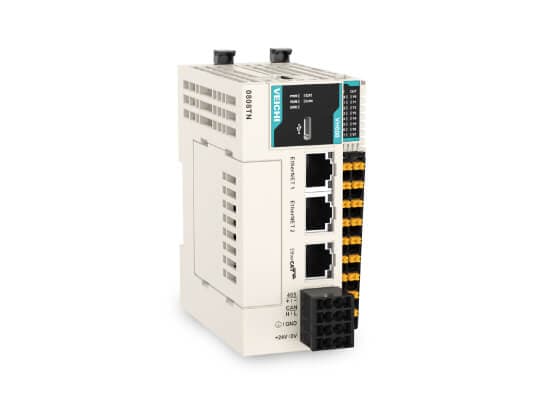

VEICHI VH600

CODESYS medium PLC, four cores, 128 EtherCAT slaves

A CODESYS-based controller for line-level automation, fully compliant with IEC 61131-3 and PLCopen. Four processor cores can be assigned by task, eight axes synchronise on a 1 ms bus cycle, and the TRACE function with breakpoint debugging makes fault-finding on a live line far less painful.

High-speed I/O

8x 200 kHz inputs, 8x 200 kHz outputs (sourcing/sinking)

Expansion

16 right-side modules max; 2x RS485 left-side expansion

Communication

1x RS485, 2x Ethernet with built-in switch (Modbus-TCP)

Fieldbus

CANopen master to 31 slaves; EtherCAT to 128 slaves including servo axes

Platform

CODESYS, IEC 61131-3 and PLCopen compliant

Languages

LD, FBD, IL, ST, SFC, CFC

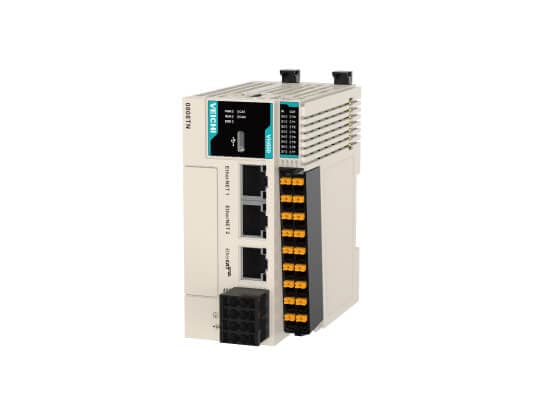

VEICHI VH500

Slim modular EtherCAT controller

A slim modular EtherCAT PLC for panels where width is the constraint, taking up to sixteen right-side expansion modules plus a left-side expansion board.

Fieldbus

EtherCAT

Expansion

Up to 16 right-side modules and 1 left-side expansion board

Form factor

Slim modular

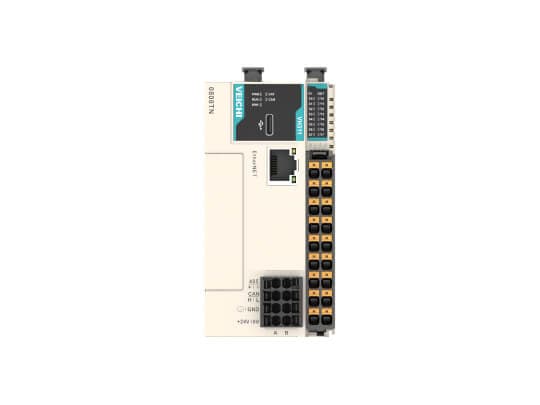

VEICHI VH300

Dual 600 MHz CPUs with multi-channel pulse control

A high-performance controller with two 600 MHz cores and multi-channel pulse output, for machines that need several stepper or pulse-train axes without moving to a full bus architecture.

Processor

Dual 600 MHz CPUs

Motion

Multi-channel pulse control

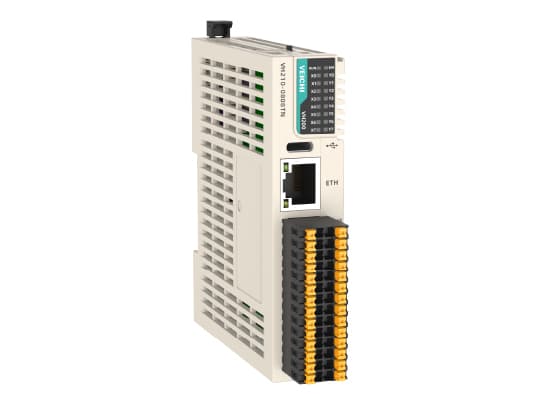

VEICHI VH200

Ultra-slim 24 mm controller with built-in analog I/O

Twenty-four millimetres wide, with Ethernet, RS232, RS485 and analog I/O already on board - which usually removes the need for an expansion module on a small machine entirely.

Width

24 mm ultra-slim

Communication

Built-in Ethernet, RS232, RS485

I/O

Built-in analog I/O

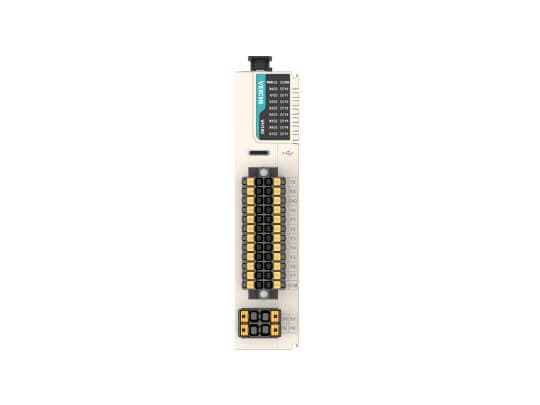

VEICHI VH100-0808TN

Economical 8-in / 8-out standalone

The smallest controller in the range - eight transistor inputs, eight outputs, no expansion. For the single machine or narrow application where a modular PLC would be over-specified.

I/O

8 inputs / 8 outputs, transistor

Type

Economical standalone, no expansion

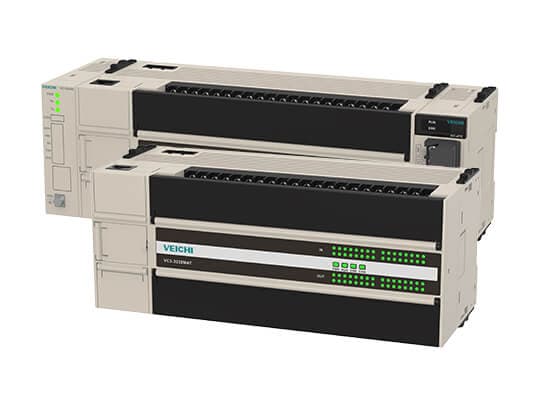

VEICHI VC3M

Third-generation dual-core motion controller

The motion-control member of the VC3 family, built on the same third-generation dual-core architecture but specified for coordinated multi-axis work.

Architecture

Third generation, dual-core

Type

Motion control PLC

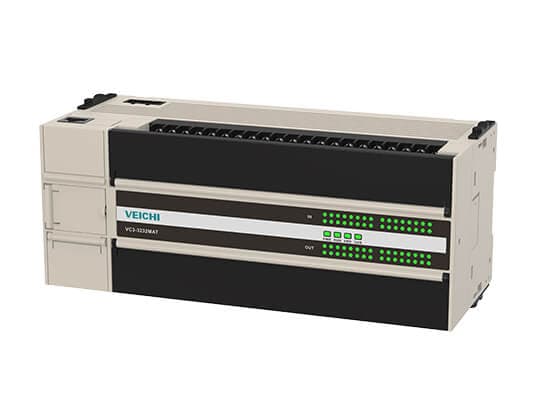

VEICHI VC3

CAN bus high-performance controller

The CAN bus variant of the third-generation VC platform, for distributed machine architectures where CANopen is already the site standard.

Fieldbus

CAN bus

Architecture

Third generation, dual-core

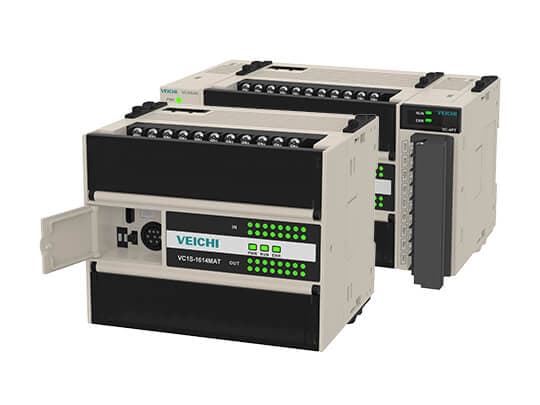

VEICHI VC1

Ultra-small general-purpose PLC

The compact general-purpose controller in the VC line, for straightforward sequence control where footprint and cost are the deciding factors.

Type

Ultra-small general-purpose PLC

VEICHI VTC

Multi-channel PID temperature controller

A dedicated temperature controller with multi-channel high-precision control and PID, for extrusion, injection moulding, ovens and any process where a general PLC analog card is not accurate enough.

Type

Multi-channel temperature controller

Control

High-precision PID

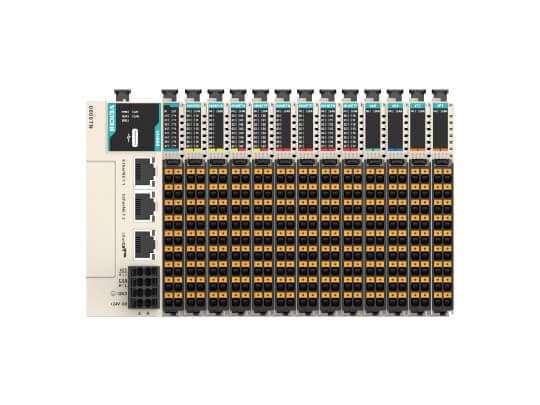

VEICHI VH Right Expansion Modules

Up to 16 I/O modules per rack on a 100 Mbps backplane

The I/O that turns a VH controller into a full rack. Digital, analog, temperature and PT modules clip onto the right-hand D-BUS, up to sixteen per controller. Removable terminals mean a failed module swaps out without touching the field wiring.

Digital I/O

16-ch DI, 8-ch DI, 16-ch DO, 8-ch DO (NPN/PNP selectable), 8 DI + 8 DO hybrid

Analog

4-ch AI at 16-bit; 4-ch AO at 12-bit

Specialist

Temperature and PT modules

Bus speed

100 Mbps D-BUS

Response

100 us across digital channels

Capacity

Up to 16 modules on VH300, VH500, VH600

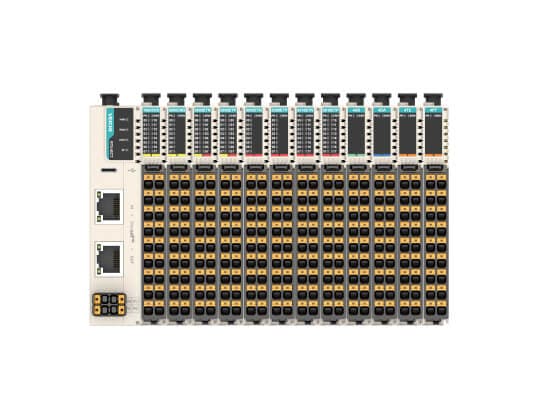

VEICHI VH Remote Expansion / Remote I/O

EtherCAT and PROFINET remote I/O drops, 125 us cycle

Remote I/O for when the signals are a long way from the controller. A VH-RTU-ECT or VH-RTU-PN head takes up to sixteen modules and drops them onto EtherCAT or PROFINET, cutting the cabinet space needed by roughly two thirds against running everything back to a central rack.

Communication heads

VH-RTU-ECT (EtherCAT), VH-RTU-PN (PROFINET v2.3 RT)

Backplane

VBUS at 100 Mbps

Transfer cycle

125 us minimum on backplane; 1 ms minimum on PROFINET

Capacity

Up to 16 I/O and special modules per drop

Compatible

VH300, VH500, VH600

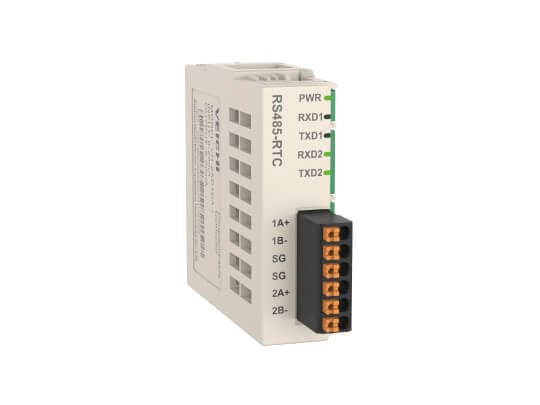

VEICHI VH Left Expansion Boards

Extra isolated RS485 and a real-time clock

A single board on the left-hand side of a VH controller, adding two isolated RS485 channels and optionally a battery-backed real-time clock. The usual reason to fit one is a second Modbus network, or timestamped logging that has to survive a power cut.

Board types

VH-RS485, VH-RS485-RTC, VH-RTC

Interfaces

Dual isolated RS485; I2C on RTC variants

Slaves

Up to 31 (50 on VH600)

Baud rates

9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbit/s

Distance

Under 100 m at full speed; under 1,000 m at 19.2 kbit/s

RTC battery

CR2354 coin cell, 5-year rated life

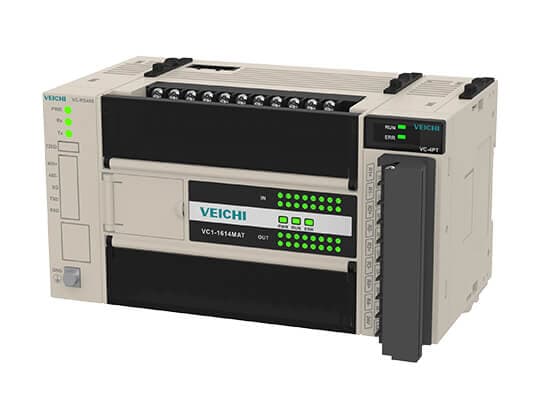

VEICHI VC Series Expansion Modules

Digital, analog and communication expansion for VC controllers

Expansion and extension modules for the VC1, VC3, VC3M and VC5 controllers, covering additional digital and analog I/O, temperature channels and communication cards. Veichi supplies these through the dealer catalogue rather than the public product pages, so we specify them against your controller and I/O list.

Compatible

VC1, VC3, VC3M, VC5 controllers

Module types

Digital I/O, analog I/O, temperature, communication

Veichi lists VC expansion in the dealer catalogue rather than on their public site, so exact module codes are confirmed at quotation. Send us your controller model and the I/O you need and we will specify the rack.
