HMI

Operator panels from a 4.3 inch machine terminal to a 15.6 inch full-HD line display. The VI20 resolves over 300 device protocols locally at the edge and speaks MQTT, so pulling machine data into a dashboard does not require a separate gateway. Aseiro builds the screens as part of our automation work.

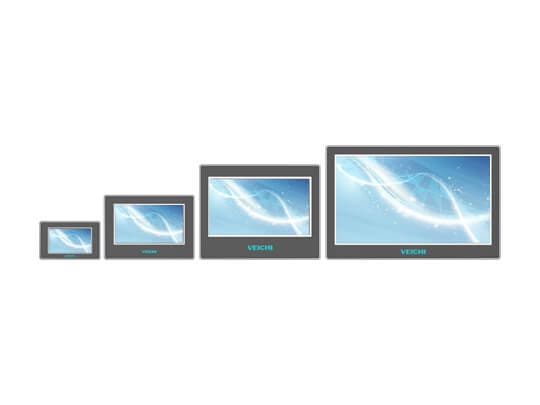

VEICHI VI20 - Edge-computing HMI with 300+ protocols and MQTT

VEICHI VI20

Edge-computing HMI with 300+ protocols and MQTT

The connected panel in the range. It resolves more than three hundred device protocols locally rather than shipping raw data upstream, speaks MQTT natively, and takes a FLink IoT module for remote PLC configuration - which turns a support call into a remote session.

Screen sizes
4.3 in 800x480 (16-bit, 250 cd/m2); 7 in 1024x600 (24-bit, 350 cd/m2); 10.1 in 1024x600 (24-bit, 400 cd/m2)
Processor
720 MHz ARM (4.3 in); 600 MHz ARM Cortex-A8 (7 in, 10.1 in)
Memory
64 MB RAM + 128 MB Flash (4.3 in); 128 MB Flash + 128 MB DDR3 (larger)
Communication
Up to 3 COM ports RS232/RS485/RS422; USB 2.0 host and slave; 10/100M Ethernet on -FE variants
Protection
IP65 front panel, IP20 rear shell
Display life
LED backlight, 50,000 hours; 170 degree viewing angle
Edge computing with 300+ protocols resolved locally
Native MQTT support
Remote PLC configuration via FLink IoT expansion module
Flex Cloud SaaS platform with mobile app access
VPN and routing functions built in
Industrial EMC compliance to EN 61000-6-2 and 6-4

Typical applications

Machine operator terminalsLine supervisory displaysRemote monitoring and IoT dashboardsPharmaceutical and chemical plant
Enquire about the VI20Datasheet

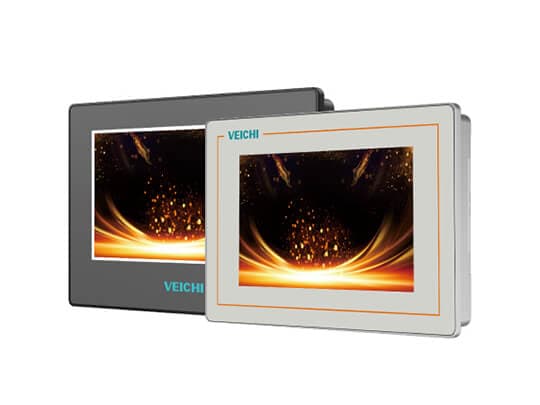

VEICHI VI30 - Cost-effective range, 4.3 inch to 15.6 inch full HD

VEICHI VI30

Cost-effective range, 4.3 inch to 15.6 inch full HD

The value line, and the one that goes furthest on screen size - up to a 15.6 inch 1920x1080 panel for line-level displays. Serial, Ethernet, WiFi and 4G variants let you match connectivity to the machine instead of paying for radios you will not use.

Screen sizes
4.3 in 480x272; 7 in 800x480; 10.1 in 1024x600; 15.6 in 1920x1080
Processor
ARM9 600 MHz or Cortex-A7 800 MHz
Memory
64 MB RAM + 8 MB Flash (base) to 128 MB Flash + 128 MB DDR3
Communication
1-3 serial ports RS232/RS485/RS422; 10/100M Ethernet on select models; optional 4G and WiFi
Housing
Industrial ABS plastic
Storage temperature
-10 C to 60 C
Up to 15.6 inch full-HD display
Favourable price to performance ratio
Serial, Ethernet, WiFi and 4G variants
Industrial ABS housing
Model variants ANL, BNL, CEL, CWH and CGH

Typical applications

Machine operator panelsLarge line-status displaysCost-sensitive OEM machine buildsRemote sites needing 4G connectivity
Enquire about the VI30Datasheet
About this range: VEICHI is a registered trademark of Shenzhen Veichi Electric Co., Ltd. Aseiro Industries is an authorised VEICHI dealer in India. Specifications are published by the manufacturer and are subject to change without notice — confirm the final specification with us before ordering.
