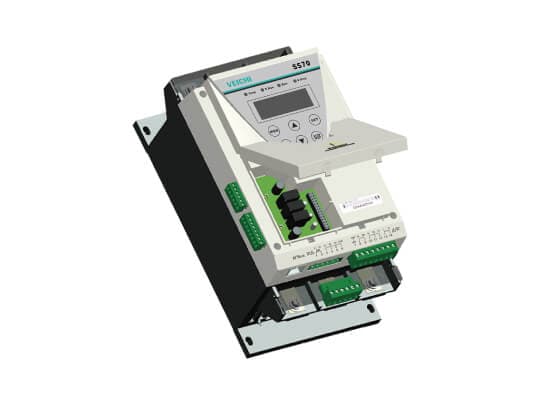

VEICHI SS70
Intelligent soft starter with built-in bypass, 5.5 kW to 630 kW
For large fans, pumps, compressors and crushers where speed control is not needed but a direct-on-line start would punish the mechanics and the supply. The bypass contactor is built in rather than externally wired, and soft stopping takes the water hammer out of pump shutdowns.
- Motor rating
- 11-1,260 A (5.5-630 kW)
- Input voltage
- AC 380 V, 460 V or 660 V, +/-15%, 50/60 Hz
- Control voltage
- AC 220 V or 110 V, +/-15%
- Start modes
- Voltage ramp, current ramp, current limit
- Communication
- Modbus; optional IoT cloud box
- Protection
- Phase loss, over/under-voltage, overload, overheat, over-current, current imbalance, start-up timeout
Built-in bypass contactor, no external component needed
Three-in, three-out wiring cuts installation time
Soft stopping reduces mechanical shock and water hammer
Real-time DSP control core
Multi-language interface
Optional cloud monitoring via IoT box
Typical applications
Municipal water and treatment plantMining and metallurgyPetroleum and chemicalPower generationFans, pumps and compressorsConveyors and crushers
