VEICHI PRODUCTS

Servo Motors

Matched servo motors for the SD drive range, in low-inertia and medium-inertia families with optional holding brakes. Aerial plug connectors replace flying leads on the current generation, and the full V7E body is IP67 rather than IP65 - worth having on any line that gets washed down.

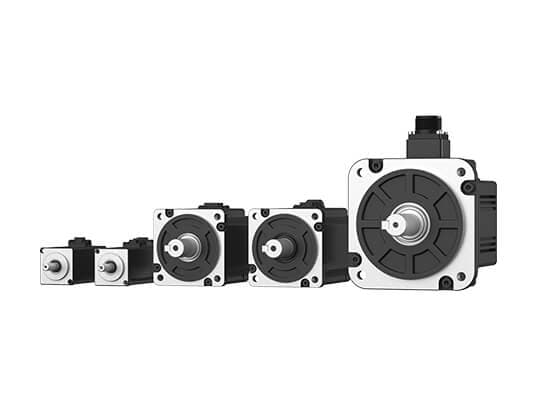

VEICHI V7E - IP67 across the full range, 0.1 kW to 7.5 kW

VEICHI V7E

IP67 across the full range, 0.1 kW to 7.5 kW

The mainstream motor family, and the one most SD700 and SD710 systems ship with. Every frame in the range is IP67 rather than the usual IP65-with-an-IP67-option, temperature rise is 5 to 10 degrees lower than the previous generation, and aerial plug wiring replaces flying leads.

Power range
0.1-7.5 kW
Torque range
0.32-47.75 Nm
Rated speed
1,500-3,000 rpm
Flange sizes
40 / 60 / 80 mm and 110 mm upward
Protection
IP65 / IP67, full range IP67 body
Brake
Available with or without holding brake
Full range IP67 motor body
Temperature rise 5-10 C lower than the previous generation
Two-wire shaft jump accuracy, up from four-wire
Shorter body for space-constrained machines
Aerial plug wiring with no flying leads

Typical applications

General machine automationPackaging and printingElectronics assemblyManipulators
Enquire about the V7EDatasheet

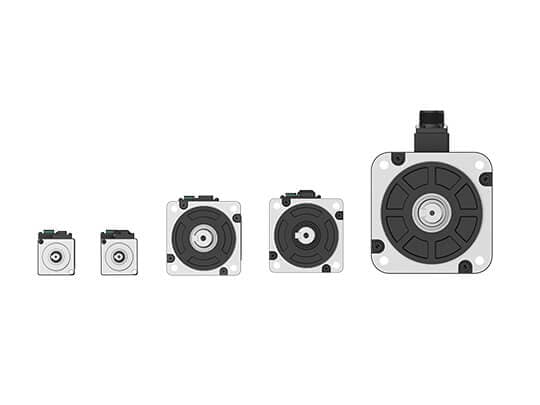

VEICHI V7U - IP67 motor matched to the SD780 drive

VEICHI V7U

IP67 motor matched to the SD780 drive

The motor partner for SD780 safety-rated systems, carrying the same CE, EAC and UL certification set so the whole axis certifies as a unit rather than as parts.

Protection
IP67
Certification
CE, EAC, UL
Matched drive
SD780 series

Frame and torque tables are selected against your drive and duty - contact us for the matched pairing.

IP67 protection
Certified CE, EAC and UL
Designed as a matched pair with the SD780

Typical applications

New energy and lithium battery equipmentPhotovoltaic manufacturingSafety-rated machine axes
Enquire about the V7UDatasheet

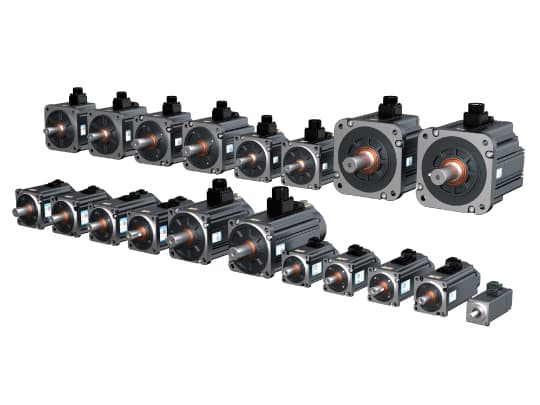

VEICHI V9E - General servo motor for semiconductor and robotics duty

VEICHI V9E

General servo motor for semiconductor and robotics duty

Aimed at the more demanding end of the range - semiconductor equipment, robotics and machine tools, where cogging and shaft runout matter more than unit price.

Type
General-purpose AC servo motor
Target sectors
Semiconductors, robotics, machine tools

Frame, torque and encoder options are selected per application - send us your axis data.

Built for semiconductor and robotics precision
Machine tool duty rated
Matched to the SD servo drive range

Typical applications

Semiconductor equipmentRoboticsMachine tools
Enquire about the V9EDatasheet

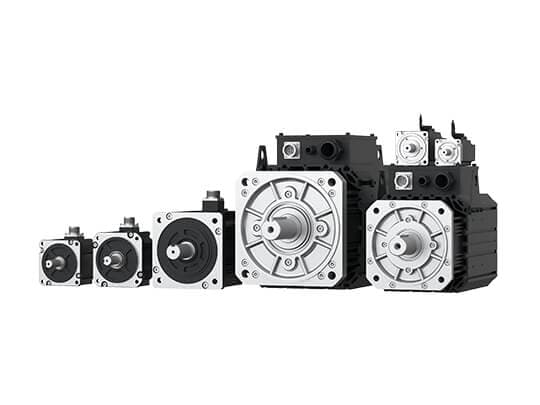

VEICHI VM7 - High-resolution encoder, medium-inertia family

VEICHI VM7

High-resolution encoder, medium-inertia family

The medium-inertia family, built with a high-resolution encoder and an optimised internal design for applications where the load inertia is larger than the low-inertia V7E is comfortable with.

Type
Medium-inertia AC servo motor
Encoder
High-resolution

Frame and torque tables available on request; 3D models are supplied with the quotation.

High-resolution encoder
Optimised internal design
Premium material specification
Suits higher load inertia than the low-inertia range

Typical applications

Machine toolsLarger-inertia positioning axesGeneral automation
Enquire about the VM7Manufacturer specifications
About this range: VEICHI is a registered trademark of Shenzhen Veichi Electric Co., Ltd. Aseiro Industries is an authorised VEICHI dealer in India. Specifications are published by the manufacturer and are subject to change without notice — confirm the final specification with us before ordering.
