Line-Scan Cameras

2K, 4K, 8K and 16K cameras for imaging moving material. Compare sensor width, interface and line rate to define the acquisition system around your process.

Find your model

Showing 11 of 11 models

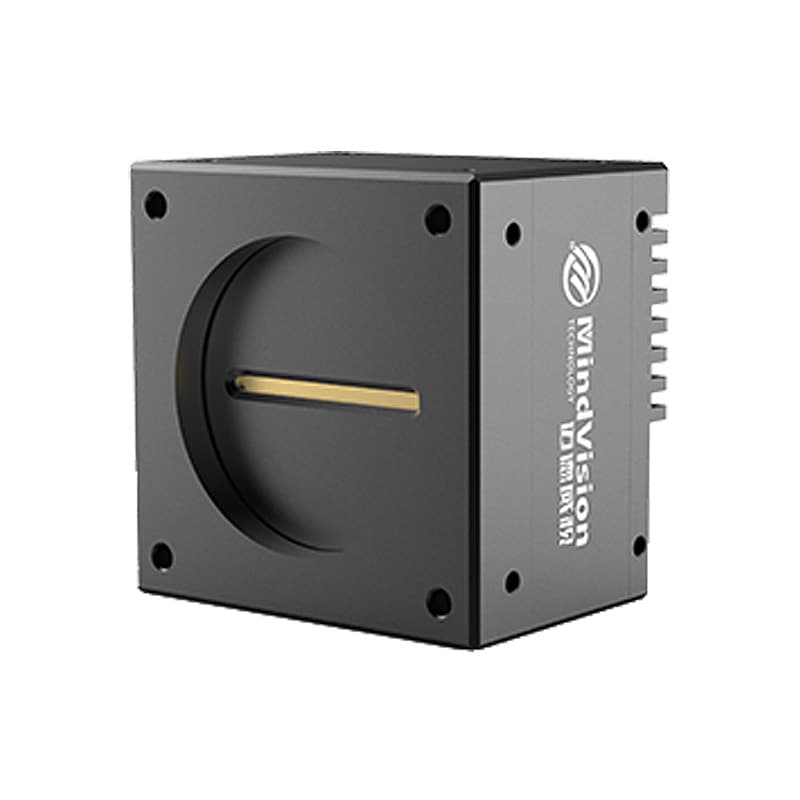

Manufacturer housing photograph

These models share the manufacturer’s housing image. Specifications below match your selection.

GigE · Mono

MV-GELM21M

2048 pixels per line for synchronised inspection of moving material.

Sensor pixels
2048 × 1
Line rate
47.1 kHz
Sensor width
28.6 mm
More specifications & selection details
Pixel size
14 × 7 µm
Interface
GigE
Colour mode
Mono
Shutter
Global

Line rate is measured in lines per second, not frames per second. Confirm encoder timing, bit depth, lens mount and acquisition hardware.

Source: MindVision product Brochure English version.pdf, PDF page 6.

Enquire about this model

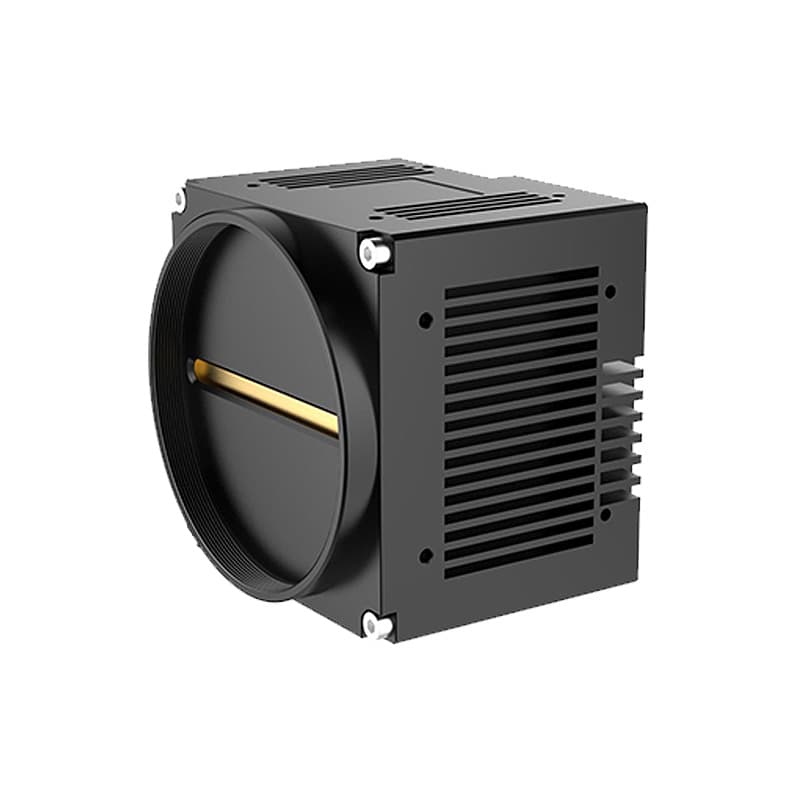

Manufacturer housing photograph

These models share the manufacturer’s housing image. Specifications below match your selection.

10GigE · Colour

MV-XGL83C

8192 pixels per line for synchronised inspection of moving material.

Sensor pixels
8192 × 3
Line rate
50 kHz (8-bit)
Sensor width
57.344 mm
More specifications & selection details
Pixel size
7 µm
Interface
10GigE
Colour mode
Colour
Shutter
Global

Line rate is measured in lines per second, not frames per second. Confirm encoder timing, bit depth, lens mount and acquisition hardware.

Source: MindVision product Brochure English version.pdf, PDF page 7.

Enquire about this model

Manufacturer housing photograph

These models share the manufacturer’s housing image. Specifications below match your selection.

CoaXPress · Colour

MV-PXL164C

16384 pixels per line for synchronised inspection of moving material.

Sensor pixels
16384 × 6
Line rate
40 kHz
Sensor width
81.92 mm
More specifications & selection details
Pixel size
5 µm
Interface
CoaXPress
Colour mode
Colour
Shutter
Global

Line rate is measured in lines per second, not frames per second. Confirm encoder timing, bit depth, lens mount and acquisition hardware.

Source: MindVision product Brochure English version.pdf, PDF page 10.

Enquire about this model

MindVision is a trademark of its respective owner. Aseiro provides product selection, supply enquiries and system integration. Product images represent the range. Model configuration, availability, drawings and applicable warranty terms are confirmed with your quotation. Camera speeds depend on the stated acquisition mode.

TALK TO AN ENGINEER

Not Sure Which
Model You Need?

Share the inspection width, line speed, smallest feature and encoder requirements. We will help with model selection, drawings and integration.
