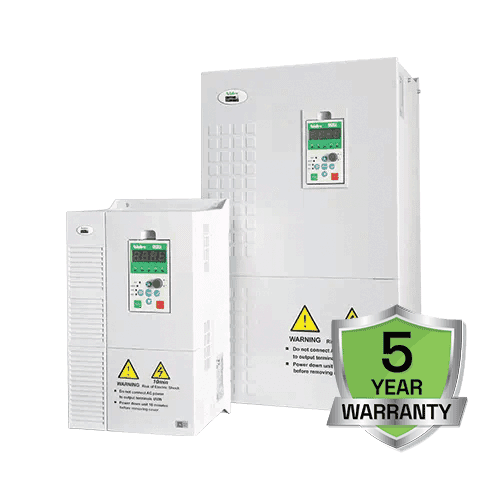

Nidec Drives NE200 & NE300
General-purpose vector control, 0.4–900 kW
The NE range combines motor speed control with built-in process functions. Select NE200 or NE300 to match the motor, feedback requirements and duty rather than choosing from power alone.
- Family power range
- 0.4–900 kW
- Output frequency
- 0–550 Hz
- Control
- V/F and sensorless vector; encoder vector control on NE300
- Protection
- IP20
- Process functions
- PID, multi-step operation and simple PLC functions
Power figures describe the combined family. Supply voltage, overload capacity and feedback options must be checked against the exact NE200 or NE300 model.
Conformal-coated circuit boards
Acceleration and deceleration profiling
NE300 expansion options for I/O and feedback
Typical applications
ConveyingPumping and ventilationMixers and extruders
