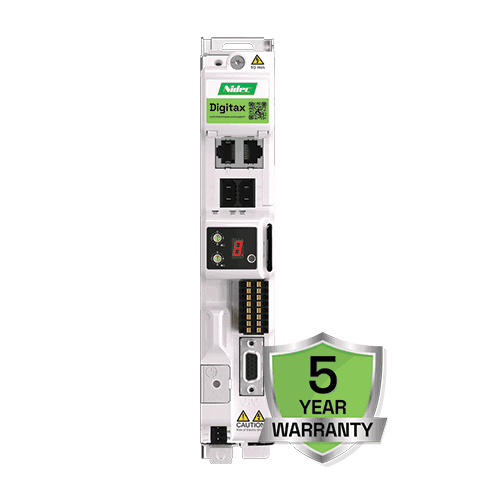

Nidec Drives Digitax HD
Compact servo drives, 0.25–7.5 kW
The Digitax HD family supports standalone and modular servo arrangements. Choose the Ethernet, Base, EtherCAT or MCi machine-control version for your machine architecture.
- Power range
- 0.25–7.5 kW
- Voltage classes
- 200 V / 400 V
- Rated current
- 1.5–16 A; up to 48 A peak across the range
- Configurations
- M750 Ethernet / M751 Base / M753 EtherCAT / M754 MCi
- Installation
- Standalone or modular arrangements
Peak current and available functions vary by model and operating conditions. Motor and feedback compatibility must be confirmed for the selected axis.
Compact axis control
Multiple network and control configurations
Suitable for dynamic servo applications
Typical applications
Positioning and indexingPackaging machineryCoordinated motion
